内径千分尺
单手操作 ，左右手均可利便使用 。
三点定位 ，适用于盲孔和通孔的细密丈量 。
硬质合金丈量面（不包括6-12mm） 。
100mm以内配校对环规 ，100mm以上选配 。

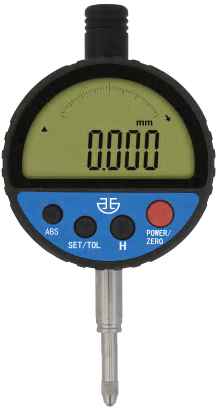

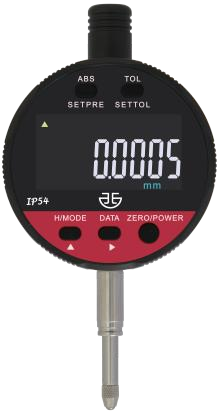

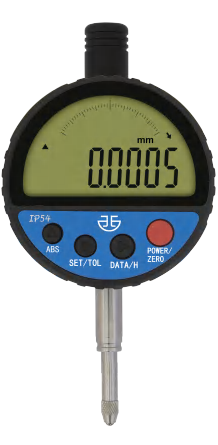

量表选配,量表装置尺寸Φ8mm或Φ9.525mm 。

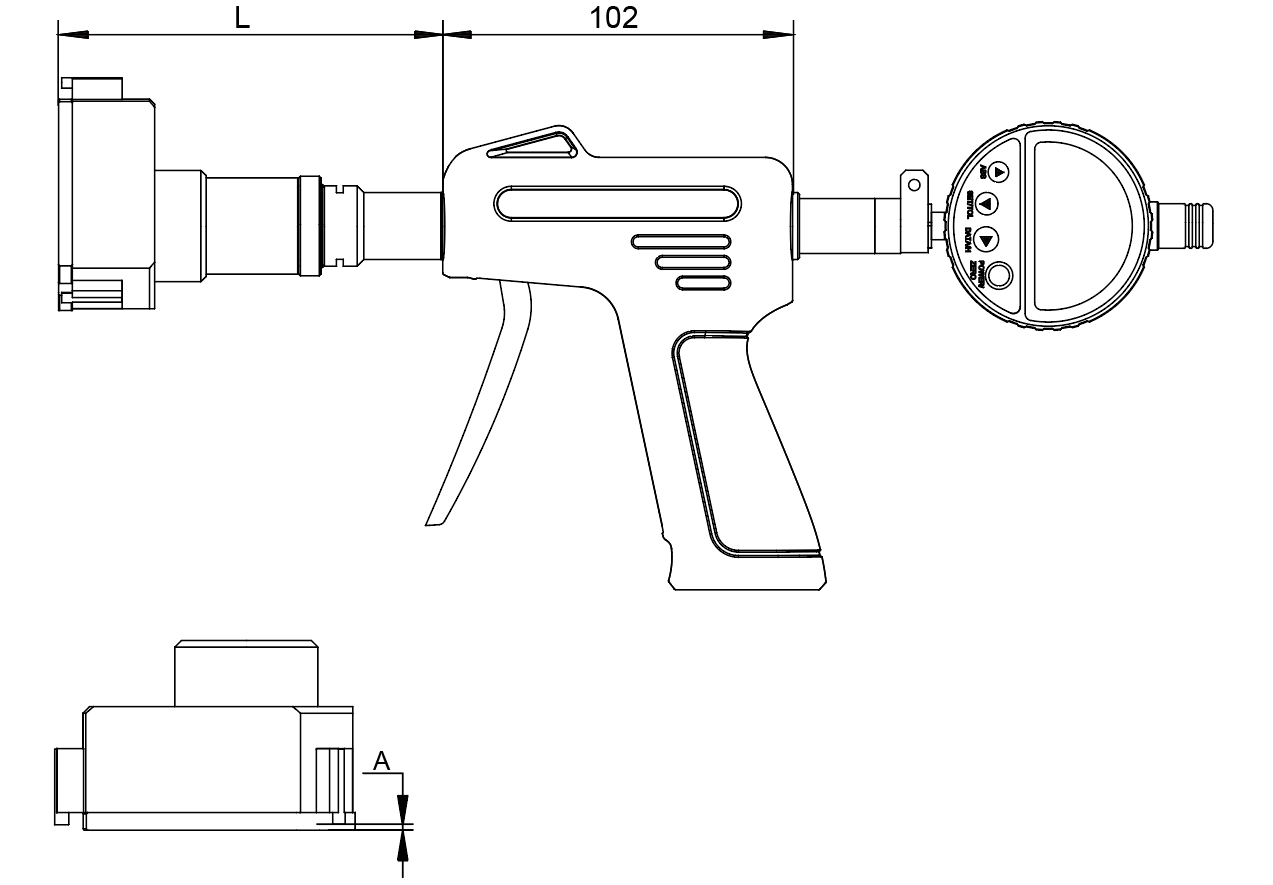

| 货号 | 丈量规模 | 精度 | 校对环规 | L | A | 接长杆 |
|---|---|---|---|---|---|---|
| 305-01-000 | 6-8mm | 0.004mm | Φ6mm | 54.5mm | 1.5mm | 100mm |
| 305-02-000 | 8-10mm | 0.004mm | Φ8mm | 54.5mm | 1.5mm | 100mm |
| 305-03-000 | 10-12mm | 0.004mm | Φ10mm | 54.5mm | 1.5mm | 100mm |
| 305-04-000 | 12-16mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 305-05-000 | 16-20mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 305-06-000 | 20-25mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 305-07-000 | 25-30mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 305-08-000 | 30-40mm | 0.004mm | Φ40mm | 97mm | 0.5mm | 150mm |
| 305-09-000 | 40-50mm | 0.005mm | Φ40mm | 97mm | 0.5mm | 150mm |
| 305-10-230 | 50-63mm | 0.005mm | Φ62mm | 112mm | 0.5mm | 150mm |
| 305-11-230 | 62-75mm | 0.005mm | Φ62mm | 112mm | 0.5mm | 150mm |
| 305-12-230 | 75-88mm | 0.005mm | Φ87mm | 112mm | 0.5mm | 150mm |
| 305-13-230 | 87-100mm | 0.005mm | Φ87mm | 112mm | 0.5mm | 150mm |
| 305-61-000 | 100-125mm | 0.005mm | Φ112.5mm | 130mm | 0.5mm | 150mm |
| 305-62-000 | 125-150mm | 0.005mm | Φ137.5mm | 130mm | 0.5mm | 150mm |
| 305-63-000 | 150-175mm | 0.005mm | Φ162.5mm | 130mm | 0.5mm | 150mm |
| 305-64-000 | 175-200mm | 0.005mm | Φ187.5mm | 130mm | 0.5mm | 150mm |
| 305-65-000 | 200-225mm | 0.007mm | Φ212.5mm | 130mm | 0.5mm | 150mm |
| 305-66-000 | 225-250mm | 0.007mm | Φ237.5mm | 130mm | 0.5mm | 150mm |
| 305-67-000 | 250-275mm | 0.007mm | Φ262.5mm | 130mm | 0.5mm | 150mm |
| 305-68-000 | 275-300mm | 0.007mm | Φ287.5mm | 130mm | 0.5mm | 150mm |
| 货号 | 丈量规模 | 套尺丈量规模 | 校对环规 | 接长杆 |
|---|---|---|---|---|
| 305-44-000 | 6-12mm(A=1.5mm) | 6-12mm | Φ6,8,10mm | 100mm |
| 305-46-000 | 12-20mm(A=0.5mm) | 12-20mm | Φ16mm | 150mm |
| 305-48-000 | 20-50mm(A=0.5mm) | 20-50mm | Φ25,40mm | 150mm |
| 305-50-230 | 50-100mm(A=0.5mm) | 50-100mm | Φ62,87mm | 150mm |
