内径千分尺
IP54 防护品级。
数显系统与132-XX-554电子千分尺相同。
适用于盲孔和通孔的细密丈量。
硬质合金丈量面（不包括6-12mm）。
棘轮测力。

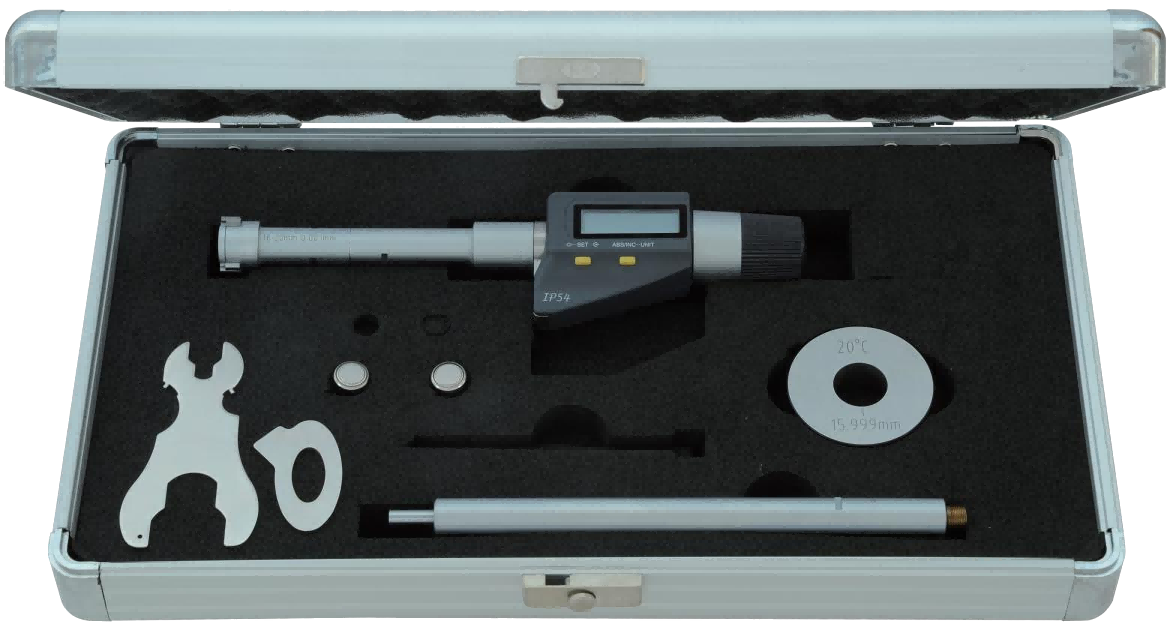

配有校对环规。

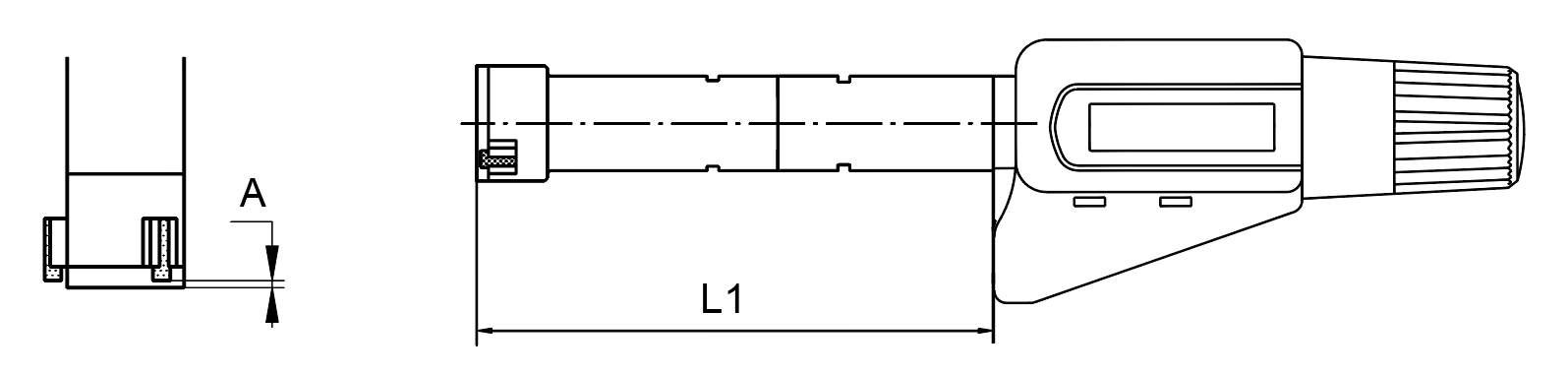

| 货号 | 丈量规模 | 精度 | 校对环规 | L1 | A | 接长杆 |
|---|---|---|---|---|---|---|
| 外外貌镀铬 | ||||||
| 335-01-950 | 6-8mm | 0.004mm | Φ6mm | 54.5mm | 1.5mm | 100mm |
| 335-02-950 | 8-10mm | 0.004mm | Φ8mm | 54.5mm | 1.5mm | 100mm |
| 335-03-950 | 10-12mm | 0.004mm | Φ10mm | 54.5mm | 1.5mm | 100mm |
| 335-04-950 | 12-16mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 335-05-950 | 16-20mm | 0.004mm | Φ16mm | 80mm | 0.5mm | 150mm |
| 335-06-950 | 20-25mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 335-07-950 | 25-30mm | 0.004mm | Φ25mm | 90mm | 0.5mm | 150mm |
| 335-08-950 | 30-40mm | 0.004mm | Φ40mm | 97mm | 0.5mm | 150mm |
| 335-09-950 | 40-50mm | 0.005mm | Φ40mm | 97mm | 0.5mm | 150mm |
