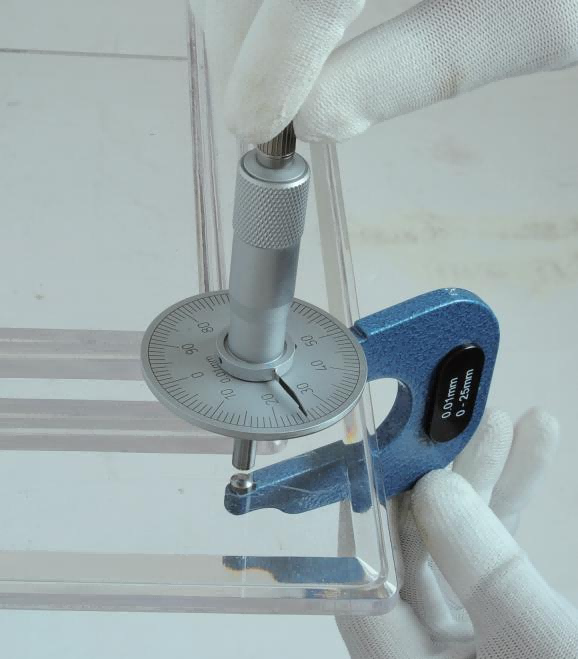

变型千分尺
大刻度盘读数利便、迅速。用于丈量板材厚度。
硬质合金丈量面；棘轮测力。
| 货号 | 丈量规模 | 精度 | 弓深 |
|---|---|---|---|
| 平丈量面 | |||
| 207-01-010 | 0-15mm | 0.004mm | 50mm |
| 207-02-010 | 0-25mm | 0.004mm | 50mm |
| 207-03-010 | 0-50mm | 0.005mm | 100mm |
| 球丈量面 | |||
| 207-31-010 | 0-15mm | 0.004mm | 50mm |
| 207-32-010 | 0-25mm | 0.004mm | 50mm |
| 207-33-010 | 0-50mm | 0.005mm | 100mm |

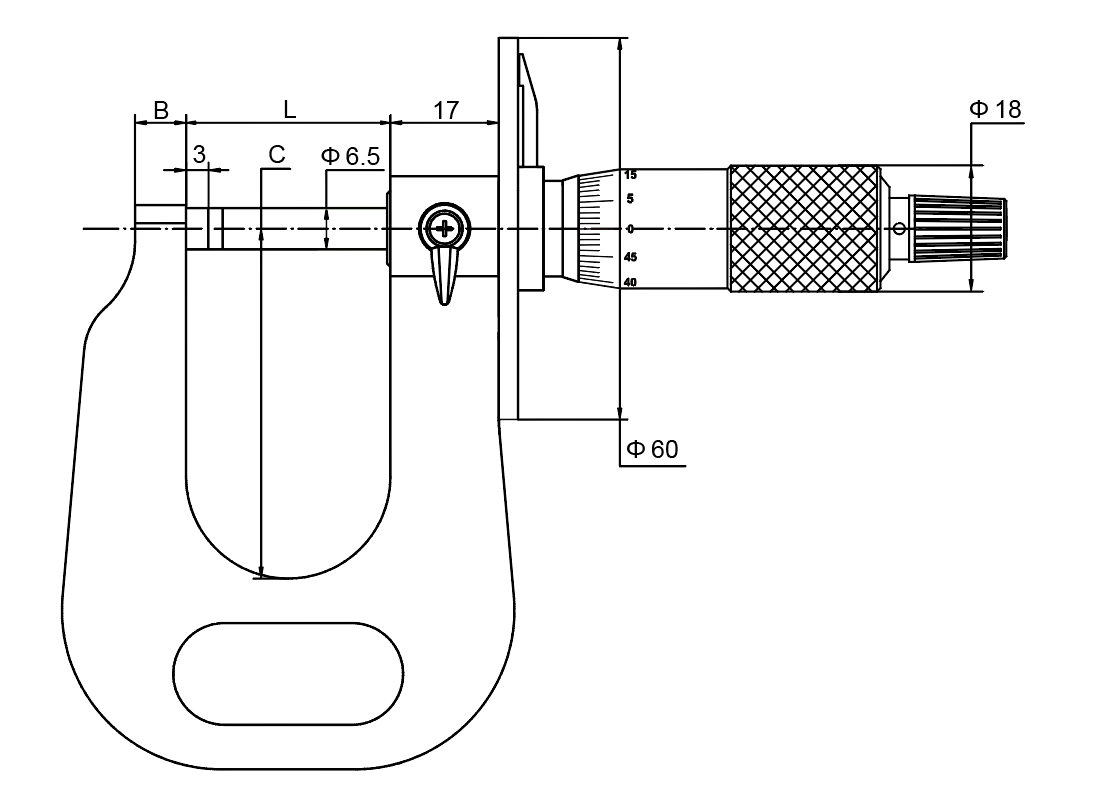

| 丈量规模 | L | B | C |
|---|---|---|---|
| 0-15mm | 22mm | 8mm | 50mm |
| 0-25mm | 32mm | 8mm | 50mm |
| 0-50mm | 57mm | 12mm | 100mm |
