量表

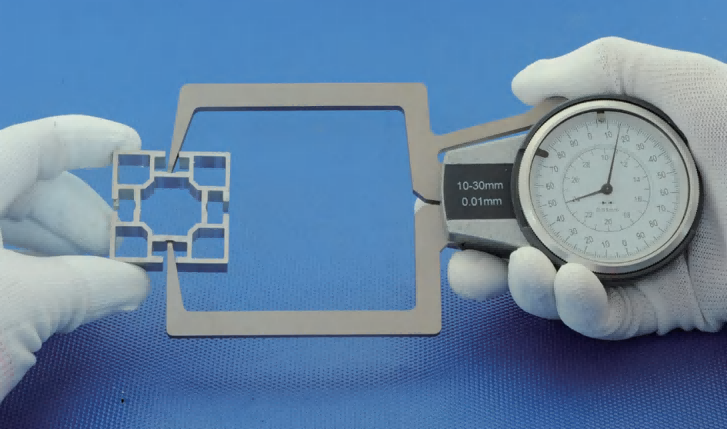

适用于丈量外圆、外圆槽及其它不易丈量的外尺寸 。
| 货号 | 丈量规模 | 精度 | 区分力 | 丈量面形式 |
|---|---|---|---|---|
| 行程 10mm | ||||

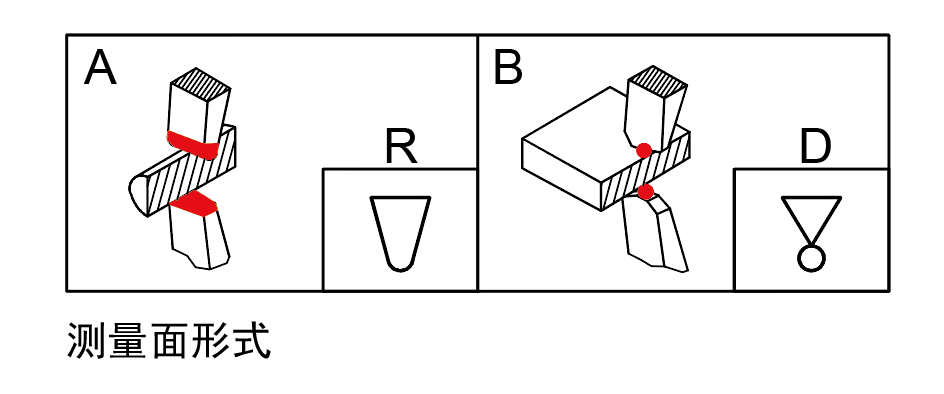

| 511-11-000 | 0-10mm | 0.02mm | 0.01mm | A型丈量面 |
| 511-12-000 | 10-20mm | 0.02mm | 0.01mm | |
| 511-13-000 | 20-30mm | 0.02mm | 0.01mm | |
| 511-14-000 | 30-40mm | 0.02mm | 0.01mm | |
| 511-15-000 | 40-50mm | 0.02mm | 0.01mm | |
| 511-11-100 | 0-10mm | 0.02mm | 0.01mm | B型丈量面 |
| 511-12-100 | 10-20mm | 0.02mm | 0.01mm | |
| 511-13-100 | 20-30mm | 0.02mm | 0.01mm | |
| 511-14-100 | 30-40mm | 0.02mm | 0.01mm | |
| 511-15-100 | 40-50mm | 0.02mm | 0.01mm | |
| 行程 20mm | ||||
| 511-22-000 | 0-20mm | 0.03mm | 0.01mm | A型丈量面 |
| 511-23-000 | 10-30mm | 0.03mm | 0.01mm | |
| 511-24-000 | 20-40mm | 0.03mm | 0.01mm | |
| 511-25-000 | 30-50mm | 0.03mm | 0.01mm | |
| 511-26-000 | 40-60mm | 0.03mm | 0.01mm | |
| 511-22-100 | 0-20mm | 0.03mm | 0.01mm | B型丈量面 |
| 511-23-100 | 10-30mm | 0.03mm | 0.01mm | |
| 511-24-100 | 20-40mm | 0.03mm | 0.01mm | |
| 511-25-100 | 30-50mm | 0.03mm | 0.01mm | |
| 511-26-100 | 40-60mm | 0.03mm | 0.01mm | |

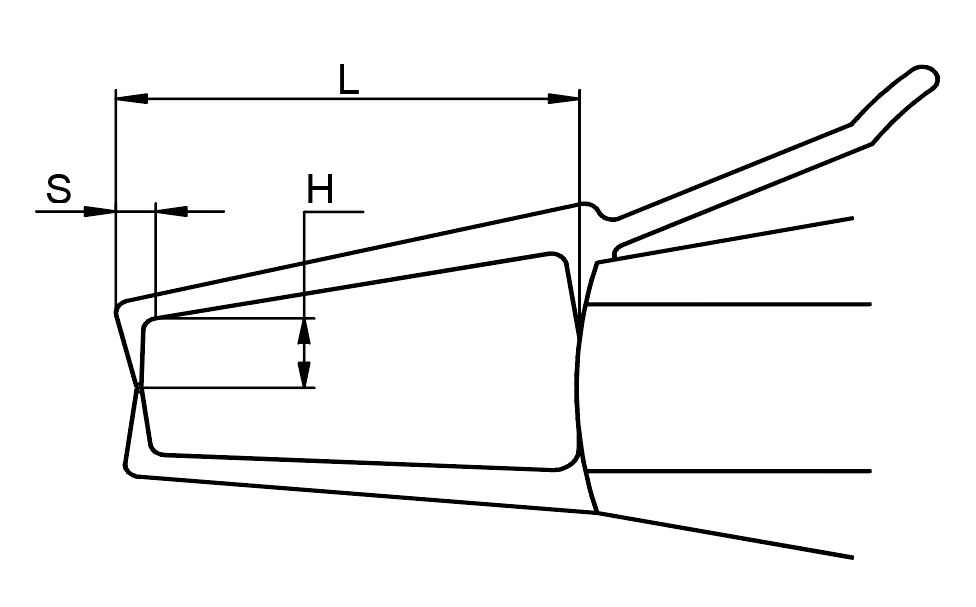

| 丈量规模 | L | S | H | 测头 | |
|---|---|---|---|---|---|
| A(R) | B(D) | ||||
| 行程10mm | |||||
| 0-10mm | 40mm | 3mm | 8mm | 0.5mm | Φ1.5mm |
| 10-20mm | 40mm | 3mm | 8mm | 0.5mm | Φ1.5mm |
| 20-30mm | 40mm | 3mm | 8mm | 0.5mm | Φ1.5mm |
| 30-40mm | 40mm | 3mm | 8mm | 0.5mm | Φ1.5mm |
| 40-50mm | 40mm | 3mm | 8mm | 0.5mm | Φ1.5mm |
| 行程20mm | |||||
| 0-20mm | 80mm | 6.5mm | 25mm | 0.75mm | Φ1.5mm |
| 10-30mm | 80mm | 6.5mm | 25mm | 0.75mm | Φ1.5mm |
| 20-40mm | 80mm | 6.5mm | 25mm | 0.75mm | Φ1.5mm |
| 30-50mm | 80mm | 6.5mm | 25mm | 0.75mm | Φ1.5mm |
| 40-60mm | 80mm | 6.5mm | 25mm | 0.75mm | Φ1.5mm |
