外径千分尺
丈量面为镶合金丈量面。

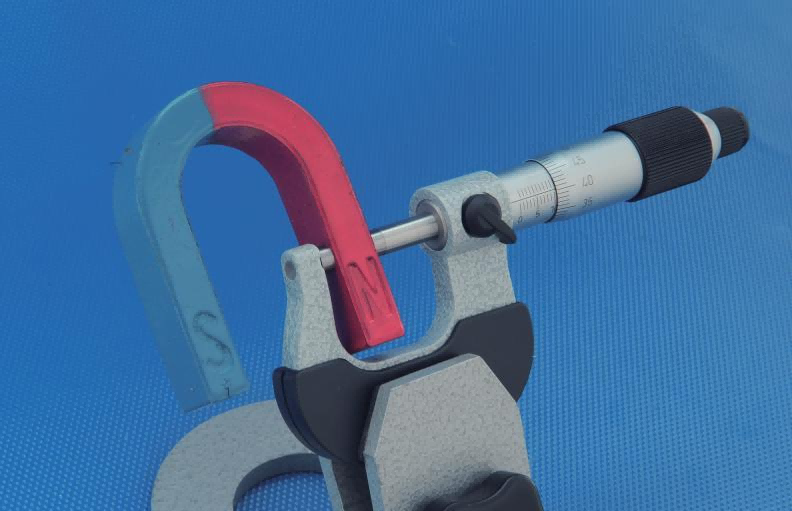

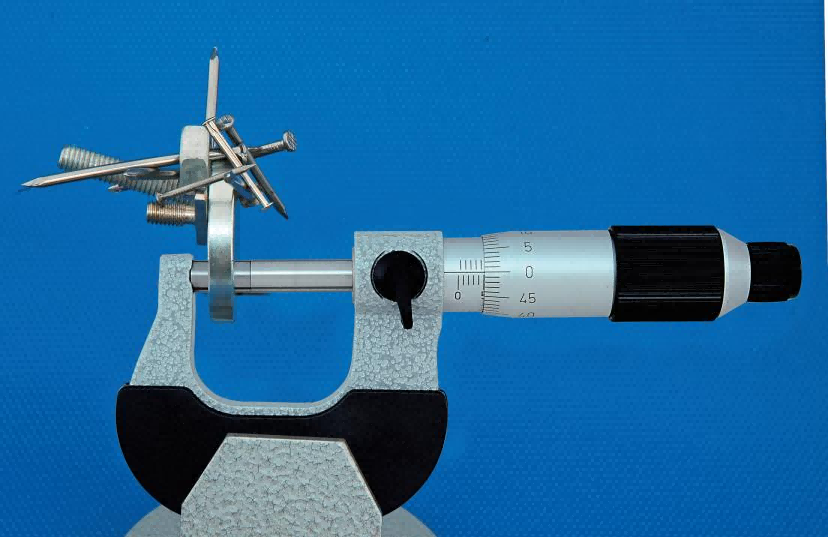

接纳不导磁质料，适用于有磁场的丈量情形。
棘轮套测力。
| 货号 | 丈量规模 | 精度 | 区分力 |
|---|---|---|---|
| 108-01-030 | 0-25mm | 0.004mm | 0.01mm |
| 108-02-030 | 25-50mm | 0.004mm | 0.01mm |
| 108-03-030 | 50-75mm | 0.005mm | 0.01mm |
| 108-04-030 | 75-100mm | 0.005mm | 0.01mm |

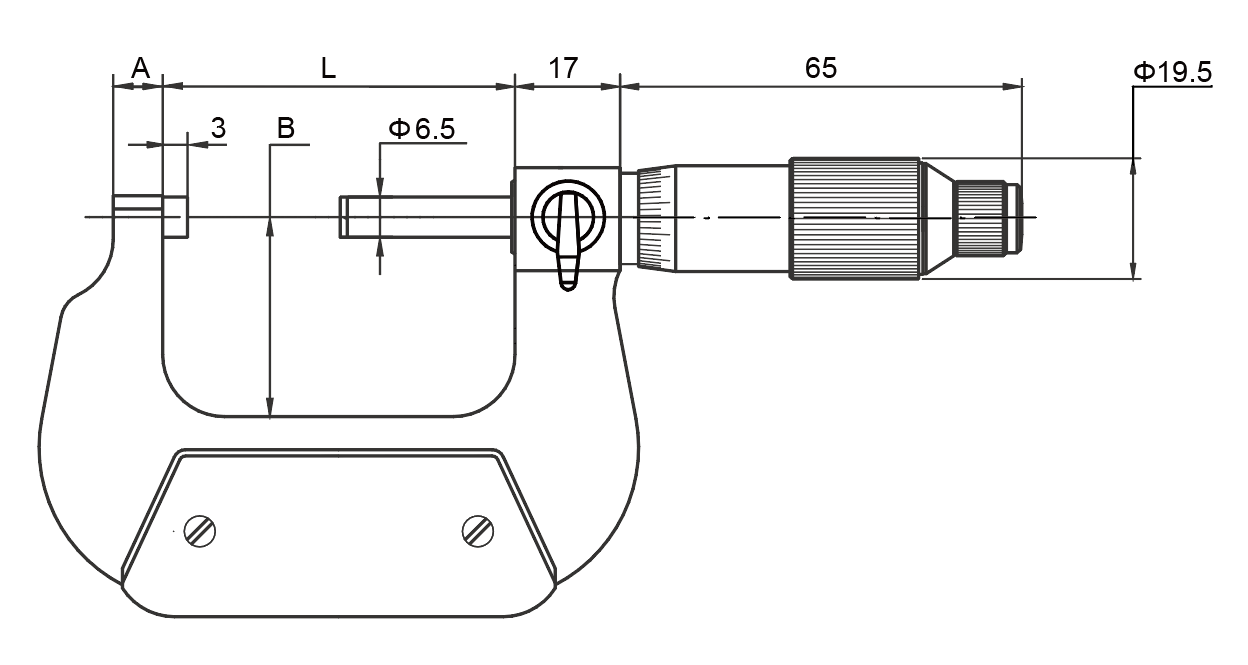

| 丈量规模 | A | B | L |
|---|---|---|---|
| 0-25mm | 6mm | 24mm | 32mm |
| 25-50mm | 8mm | 32mm | 57mm |
| 50-75mm | 8mm | 45mm | 82mm |
| 75-100mm | 8mm | 57mm | 107mm |
